RH Lip and Spur 70mm |
| |
| A range of Right
Hand rotation multi-boring dowel drills, suitable for use in single
and multi-head boring machines. The tools have a 10mm shank which
incorporates a flat for secure location and a grub screw in the shank
end for precise height adjustment. Solid Tungsten Carbide tips make
the drills suitable for use in solid timbers and man-made boards.
Lip & spur design for blind hole drilling. |
| |

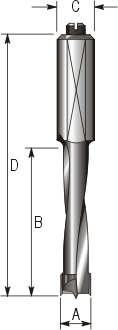

| Art
Number |
A |
B |
C |
D |
DD57040R |
4.0mm |
25mm |
10mm |
70mm |
DD57050R |
5.0mm |
25mm |
10mm |
70mm |
DD57060R |
6.0mm |
25mm |
10mm |
70mm |
DD57070R |
7.0mm |
25mm |
10mm |
70mm |
DD57075R |
7.5mm |
25mm |
10mm |
70mm |
DD57080R |
8.0mm |
25mm |
10mm |
70mm |
DD57095R |
3/8" |
25mm |
10mm |
70mm |
DD57100R |
10.0mm |
25mm |
10mm |
70mm |
DD57120R |
12.0mm |
25mm |
10mm |
70mm |
DD57150R |
15.0mm |
25mm |
10mm |
70mm |
DD57160R |
16.0mm |
25mm |
10mm |
70mm |
DD57170R |
17.0mm |
25mm |
10mm |
70mm |
|
 |
|
| |
