Height Gages |
|

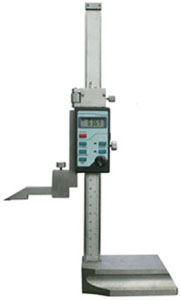

| Digital
Height Gages (single-column) |
Feature:
 Inch/mm:
inch/metric conversion
ON/OFF:
power on and power off
ZERO/ABS:
zero setting,absolute/relative measurement selection
ABS/INC:
ABS/INC measurement conversion
ZERO:
zero setting
SET:
data presetting
PRESET:
increasing or reducing displayed value
+:
increasing displayed value
-:
reducing displayed value |
|
| Art
No. |
Range |
Resolution |
Accuracy |
826-011 |
150mm/6" |
0.01mm/0.0005" |
±0.03mm |
826-021 |
200mm/8" |
0.01mm/0.0005" |
±0.03mm |
826-031 |
300mm/12" |
0.01mm/0.0005" |
±0.03mm |
826-041 |
600mm/24" |
0.01mm/0.0005" |
±0.05mm |
|
|
| |
| |

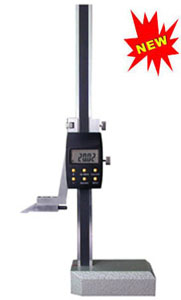

| Digital
Height Gages (single-column) |
Feature:
Inch/mm:
inch/metric conversion
ON/OFF:
power on and power off
ZERO/ABS:
zero setting,absolute/relative measurement selection
ABS/INC:
ABS/INC measurement conversion
ZERO:
zero setting
SET:
data presetting
PRESET:
increasing or reducing displayed value
+:
increasing displayed value
-:
reducing displayed value |
|
| Art
No. |
Range |
Resolution |
Accuracy |
826-012 |
150mm/6" |
0.01mm/0.0005" |
±0.03mm |
826-022 |
200mm/8" |
0.01mm/0.0005" |
±0.03mm |
826-032 |
300mm/12" |
0.01mm/0.0005" |
±0.03mm |
826-042 |
600mm/24" |
0.01mm/0.0005" |
±0.05mm |
|
|
| |
| |

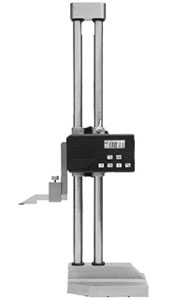

| Digital
Height Gages (double-column) |
Feature:
Inch/mm:
inch/metric conversion
ON/OFF:
power on and power off
ABS:
absolute/relative measurement selection
TOL:
tolerance setting
H:
memory hold
C:
zero setting |
|
| Art
No. |
Range |
Resolution |
Accuracy |
826-013 |
300mm/12" |
0.01mm/0.001" |
±0.04mm |
826-023 |
500mm/20" |
0.01mm/0.001" |
±0.05mm |
826-033 |
600mm/24" |
0.01mm/0.001" |
±0.05mm |
|
|
| |
| |

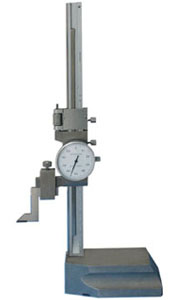

| Dial
Height Gages (single-column) |
| Art
No. |
Range |
Resolution |
Accuracy |
826-001 |
0-150mm |
0.01mm |
±0.03mm |
826-002 |
0-200mm |
0.01mm |
±0.03mm |
826-003 |
0-300mm |
0.01mm |
±0.04mm |
| 826-004 |
0-150mm |
0.02mm |
±0.03mm |
| 826-005 |
0-200mm |
0.02mm |
±0.03mm |
| 826-006 |
0-300mm |
0.02mm |
±0.04mm |
826-007 |
0-6" |
0.001" |
±0.0012" |
826-008 |
0-8" |
0.001" |
±0.0012" |
826-009 |
0-12" |
0.001" |
±0.0015" |
|
|
|
| |
| |

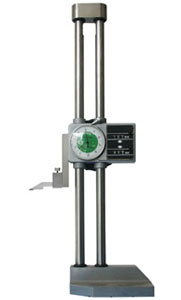

| Dial
Height Gages (double-column) |
| Art
No. |
Range |
Resolution |
Accuracy |
826-014 |
0-300mm |
0.01mm |
±0.04mm |
826-024 |
0-500mm |
0.01mm |
±0.05mm |
826-034 |
0-600mm |
0.01mm |
±0.05mm |
| 826-044 |
0-12" |
0.001" |
±0.0015" |
| 826-054 |
0-20" |
0.001" |
±0.002" |
| 826-064 |
0-24" |
0.001" |
±0.002" |
|
|
|
| |
