Vernier Caliper |
|
Stainless-steel
Materials -standard
|
 |
| Art
No. |
Range |
Resolution |
Accuracy |
L |
A |
B |
C |
D |

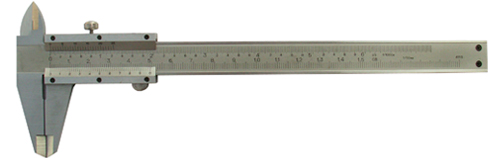

817-012 |
0-150mm |
0.02mm |
±0.03mm |
232mm |
40mm |
21mm |
16mm |
3.0mm |
817-022 |
0-200mm |
0.02mm |
±0.03mm |
300mm |
50mm |
24mm |
16mm |
3.5mm |
817-032 |
0-300mm |
0.02mm |
±0.04mm |
412mm |
60mm |
27mm |
21mm |
4.0mm |
817-412 |
150mm/6" |
0.02mm/0.001" |
±0.03mm |
232mm |
40mm |
21mm |
16mm |
3.0mm |
817-422 |
200mm/6" |
0.02mm/0.001" |
±0.03mm |
300mm |
50mm |
24mm |
16mm |
3.5mm |
817-432 |
300mm/12" |
0.02mm/0.001" |
±0.04mm |
412mm |
60mm |
27mm |
21mm |
4.0mm |
|
|
| |
| |
Stainless-steel
Materials -auto lock |
 |
| Art
No. |
Range |
Resolution |
Accuracy |
L |
A |
B |
C |
D |

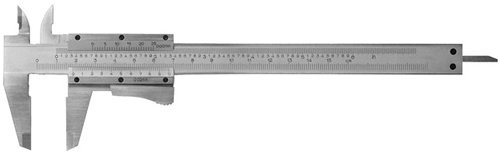

817-013 |
0-150mm |
0.02mm |
±0.03mm |
232mm |
40mm |
21mm |
16mm |
3.0mm |
817-413 |
150mm/6" |
0.02mm/0.001" |
±0.03mm |
232mm |
40mm |
21mm |
16mm |
3.0mm |
|
|
| |
| |
Stainless-steel
Materials -fine adjustment |
 |
| Art
No. |
Range |
Resolution |
Accuracy |
L |
A |
B |
C |
D |

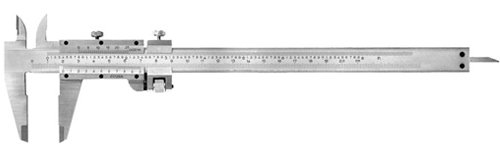

817-024 |
0-200mm |
0.02mm |
±0.03mm |
300mm |
50mm |
24mm |
16mm |
3.5mm |
817-034 |
0-300mm |
0.02mm |
±0.04mm |
412mm |
60mm |
27mm |
21mm |
4.0mm |
817-424 |
8"/200mm |
0.001"/0.02mm |
±0.03mm |
300mm |
50mm |
24mm |
16mm |
3.5mm |
817-434 |
12"/300mm |
0.001"/0.02mm |
±0.04mm |
412mm |
60mm |
27mm |
21mm |
4.0mm |
|
|
| |
| |
Carbon-steel
Materials -large size |
 |
| Art
No. |
Range |
Resolution |
Accuracy |
817-815 |
0-500mm |
0.02mm |
±0.05mm |
817-825 |
0-600mm |
0.02mm |
±0.05mm |
817-835 |
0-1000mm |
0.02mm |
±0.07mm |
817-845 |
0-1500mm |
0.02mm |
±0.11mm |
|
|
| |
