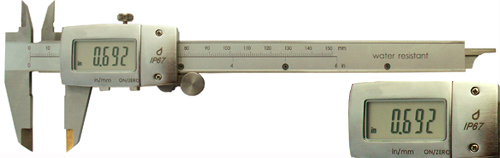

Digital Caliper (Water
Resistant) |
|
Features:
 Metallic
Cover
Fully
protected against the penetration of liquids and antimagnetic;
IP67
prevent dust, spraying water or oil from entering, the
caliper through effective encapsulation of the main parts;
Auto
power off;
Zero
setting at any position;
Inch/mm
conversion at any position;
Four-way
measurement; |
 |
Art
No. |
Range |
Resolution |
Accuracy |
L |
A |
B |
C |
D |
800-616 |
150mm/6" |
0.01mm/0.0005" |
±0.03mm |
232mm |
40mm |
21mm |
16mm |
3.6mm |
800-626 |
200mm/8" |
0.01mm/0.0005" |
±0.03mm |
286mm |
50mm |
24mm |
16mm |
3.6mm |
800-636 |
300mm/12" |
0.01mm/0.0005" |
±0.04mm |
395mm |
60mm |
26mm |
16mm |
4.0mm |
|
|
| |
| |

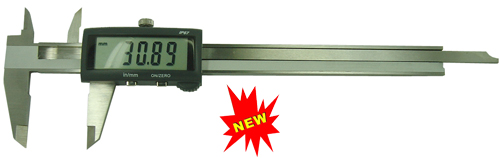

Features:
Plastic
Cover
Dust/Water
Protection: IP67;
Maximum
Measurement Speed: 1.5m/s 60inch/s;
Operating
Temperature: 0~40 °C;
Power:
3V CR2025 (silver oxide cell) 1 battery;
Battery
Life: 1 year continuous usage / 3 years under normal operation; |
 |
Art
No. |
Range |
Resolution |
Accuracy |
L |
A |
B |
C |
D |
818-616 |
150mm/6" |
0.01mm/0.0005" |
±0.03mm |
236mm |
40mm |
21mm |
16mm |
3.6mm |
818-626 |
200mm/8" |
0.01mm/0.0005" |
±0.03mm |
290mm |
50mm |
24mm |
16mm |
3.6mm |
818-636 |
300mm/12" |
0.01mm/0.0005" |
±0.04mm |
395mm |
64mm |
26mm |
16mm |
4.0mm |
|
|
| |
