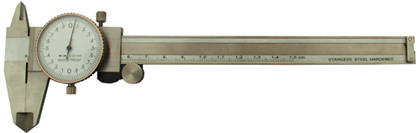

Dial Caliper |
|
Metric
Type
Features:
 Made
of stainless steel
All
measuring face is hardened and finished
Adjustable
bezel, easy to zero setting
For
measuring to ID, OD, Depth and Step |
 |
| Art
No. |
Range |
Resolution |
Accuracy |
L |
A |
B |
C |
D |
816-111 |
0-150mm |
0.02mm |
±0.03mm |
234mm |
40mm |
16mm |
16mm |
3.3mm |
816-121 |
0-200mm |
0.02mm |
±0.03mm |
284mm |
48mm |
24mm |
16mm |
3.3mm |
816-131 |
0-300mm |
0.02mm |
±0.04mm |
405mm |
62mm |
27mm |
20mm |
4.0mm |
816-011 |
0-150mm |
0.01mm |
±0.03mm |
234mm |
40mm |
16mm |
16mm |
3.3mm |
816-021 |
0-200mm |
0.01mm |
±0.03mm |
284mm |
48mm |
24mm |
16mm |
3.3mm |
816-031 |
0-300mm |
0.01mm |
±0.04mm |
405mm |
62mm |
27mm |
20mm |
4.0mm |
|
|
| |
| |
Inch
Type
Features:
Made
of stainless steel
All
measuring face is hardened and finished
Adjustable
bezel, easy to zero setting
For
measuring to ID, OD, Depth and Step |
 |
| Art
No. |
Range |
Resolution |
Accuracy |
L |
A |
B |
C |
D |
816-311 |
0-6" |
0.001" |
±0.001" |
234mm |
40mm |
16mm |
16mm |
3.3mm |
816-321 |
0-8" |
0.001" |
±0.002" |
284mm |
48mm |
24mm |
16mm |
3.3mm |
816-331 |
0-12" |
0.001" |
±0.002" |
405mm |
62mm |
27mm |
20mm |
4.0mm |
816-211 |
0-6" |
0.0005" |
±0.001" |
234mm |
40mm |
16mm |
16mm |
3.3mm |
816-221 |
0-8" |
0.0005" |
±0.002" |
284mm |
48mm |
24mm |
16mm |
3.3mm |
816-231 |
0-12" |
0.0005" |
±0.002" |
405mm |
62mm |
27mm |
20mm |
4.0mm |
|
|
| |
| |

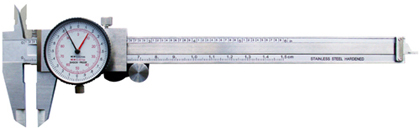

Metric/Inch
Type
Features:
Made
of stainless steel
English
& metric grade on beam
Two
pointers indicate metric and inch
All
measuring face is hardened and finished
Adjustable
bezel, easy to zero setting
For
measuring to ID, OD, Depth and Step |
 |
| Art
No. |
Range |
Resolution |
Accuracy |
L |
A |
B |
C |
D |
816-511 |
150mm/6" |
0.02mm/0.001" |
±0.03mm |
234mm |
40mm |
16mm |
16mm |
3.3mm |
816-521 |
200mm/8" |
0.02mm/0.001" |
±0.03mm |
284mm |
48mm |
24mm |
16mm |
3.3mm |
816-531 |
300mm/12" |
0.02mm/0.001" |
±0.04mm |
405mm |
62mm |
27mm |
20mm |
4.0mm |
816-711 |
6"/150mm |
0.001"/0.02mm |
±0.03mm |
234mm |
40mm |
16mm |
16mm |
3.3mm |
816-721 |
8"/200mm |
0.001"/0.02mm |
±0.03mm |
284mm |
48mm |
24mm |
16mm |
3.3mm |
816-731 |
12"/300mm |
0.001"/0.02mm |
±0.04mm |
405mm |
62mm |
27mm |
20mm |
4.0mm |
|
|
| |
