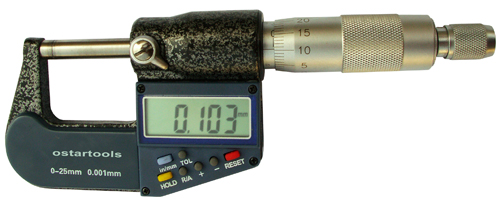

Micrometers |
|
| Digital
Micrometers |
Features:
 Inch/mm:inch/metric
conversion
ON/OFF:power
on and power off
ZERO:zero
setting
Carbide
measuring face
Ratchet
stop
Via
data connecting cable |
 |
| Art
No. |
Range |
Resolution |
Accuracy |
L |
A |
B |
C |
D |
822-011 |
0-25mm/0-1" |
0.01mm/0.0005" |
0.004mm |
32mm |
3.8mm |
5.5mm |
26mm |
6.5mm |
822-021 |
25-50mm/1-2"
|
0.01mm/0.0005" |
0.004mm |
57mm |
3.8mm |
5.5mm |
26mm |
6.5mm |
822-031 |
50-75mm/2-3"
|
0.01mm/0.0005" |
0.005mm |
82mm |
3.8mm |
5.5mm |
40mm |
6.5mm |
822-041 |
75-100mm/3-4" |
0.01mm/0.0005" |
0.005mm |
107mm |
3.8mm |
5.5mm |
54mm |
6.5mm |
822-051 |
100-125mm/4-5" |
0.01mm/0.0005" |
0.006mm |
131mm |
3.8mm |
7.0mm |
67mm |
6.5mm |
822-061 |
125-150mm/5-6" |
0.01mm/0.0005" |
0.006mm |
156mm |
3.8mm |
7.0mm |
80mm |
6.5mm |
822-071 |
150-175mm/6-7" |
0.01mm/0.0005" |
0.007mm |
181mm |
3.8mm |
12.5mm |
92mm |
6.5mm |
822-081 |
175-200mm/7-8" |
0.01mm/0.0005" |
0.007mm |
207mm |
3.8mm |
12.5mm |
105mm |
6.5mm |
|
|
| |
| |

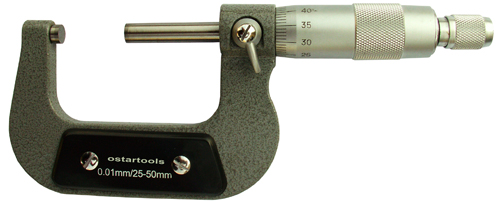

| Micrometers |
Features:
Carbide
measuring face
Ratchet
stop
With
lock nut |
 |
|
| Art
No. |
Range |
Resolution |
Accuracy |
823-01 |
0-25mm |
0.01mm |
0.004mm |
823-02 |
25-50mm
|
0.01mm |
0.004mm |
823-03 |
50-75mm
|
0.01mm |
0.005mm |
823-04 |
75-100mm |
0.01mm |
0.005mm |
823-05 |
100-125mm |
0.01mm |
0.006mm |
823-06 |
125-150mm |
0.01mm |
0.006mm |
823-07 |
150-175mm |
0.01mm |
0.007mm |
823-08 |
175-200mm |
0.01mm |
0.007mm |
|
| Art
No. |
Range |
Resolution |
Accuracy |
823-21 |
0-1" |
0.0005" |
0.0016" |
823-22 |
1-2"
|
0.0005" |
0.0016" |
823-23 |
2-3"
|
0.0005" |
0.002" |
823-24 |
3-4" |
0.0005" |
0.002" |
823-25 |
4-5" |
0.0005" |
0.003" |
823-26 |
5-6" |
0.0005" |
0.003" |
- |
- |
- |
- |
- |
- |
- |
- |
|
|
| |
| |
| IP65
Waterproof Digital Micrometers |
Features:
Inch/mm:inch/metric
conversion
ZERO:zero
setting
HOLD:memory
hold
ABS:absolute/relative
measurement selection
IP65
prevent dust, water or oil, fully protected against the
penetration of liquids and antimagnetic
Carbide
measuring face
Ratchet
stop
With
yellow LCD |
 |
| Art
No. |
Range |
Resolution |
Accuracy |
L |
A |
B |
C |
D |
829-112 |
0-25mm/0-1" |
0.01mm/0.0005" |
0.004mm |
34mm |
5.5mm |
8.5mm |
25mm |
6.5mm |
829-122 |
25-50mm/1-2"
|
0.01mm/0.0005" |
0.004mm |
59mm |
5.5mm |
10.0mm |
30mm |
6.5mm |
829-132 |
50-75mm/2-3"
|
0.01mm/0.0005" |
0.005mm |
84mm |
5.5mm |
10.0mm |
47mm |
6.5mm |
829-142 |
75-100mm/3-4" |
0.01mm/0.0005" |
0.005mm |
109mm |
5.5mm |
11.0mm |
60mm |
6.5mm |
|
|
| |
| |

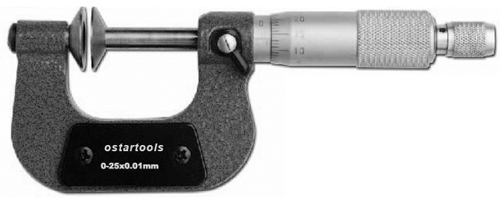

| Disk
Type Micrometers |
Features:
For
measuring gears and thickness of paper
Ratchet
stop
Painted
frame
Carbide
measuring face |
 |
|
| Art
No. |
Range |
Resolution |
Accuracy |
830-01 |
0-25mm |
0.01mm |
0.004mm |
830-02 |
25-50mm
|
0.01mm |
0.004mm |
830-03 |
50-75mm
|
0.01mm |
0.005mm |
823-04 |
75-100mm |
0.01mm |
0.005mm |
|
|
|
| |
| |

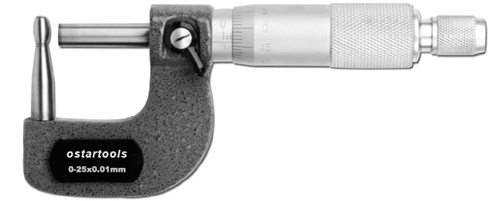

| Tube
Micrometers |
Features:
For
measuring wall thickness of tubes
Ratchet
stop
Painted
frame
Carbide
measuring face |
 |
|
| Art
No. |
Range |
Resolution |
Accuracy |
831-01 |
0-25mm |
0.01mm |
0.004mm |
|
|
|
| |
| |

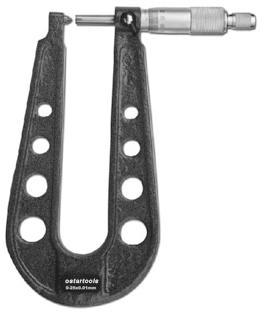

| Deep
Throat Micrometers |
Features:
For
measuring wall thickness of tubes
Ratchet
stop
Painted
frame
Carbide
measuring face |
|
| Art
No. |
Range |
Resolution |
Accuracy |
832-01 |
0-25mm |
0.01mm |
0.004mm |
|
|
| |
| |

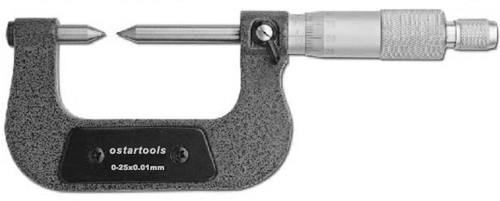

| Point
Micrometers |
Features:
For
measuring groove, fillister, key grooveand other object
difficult to measure
Ratchet
stop
Painted
frame
Carbide
measuring face |
 |
|
| Art
No. |
Range |
Resolution |
Accuracy |
833-01 |
0-25mm |
0.01mm |
0.004mm |
833-02 |
25-50mm |
0.01mm |
0.004mm |
|
|
|
| |
