Hinge Boring Bits

A range of boring cutters to suit the popular sizes of concealed cabinet hinges and KD fittings. All sizes have a centre point and two scoring cutters and produce a clean flat bottomed hole in all timbers and particle boards. Cutters up to 26mm diameter may be used at speeds up to 25,000 rpm, however the larger cutters should ideally be used at speeds below 10,000 rpm in a pillar drill or similar, although a variable speed routing machine is also suitable. In addition to hinge sinking, these cutters are also ideal for any operation requiring a clean bored hole with a flat bottom.
The 30410010 has a 10mm shank, with flat and height adjustment screw, for use in multi-boring machines etc.

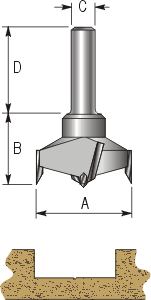

Art No.
A
B
C
D
30410001
15.0mm
26mm
8mm
36mm
30410002
20.0mm
26mm
8mm
36mm
30410003
20.0mm
26mm
3/8"
36mm
30410004
22.0mm
26mm
3/8"
36mm
30410005
25.0mm
26mm
3/8"
36mm
30410006
26.0mm
26mm
3/8"
36mm
30410007
30.0mm
28mm
3/8"
36mm
30410008
35.0mm
28mm
8mm
36mm
30410009
35.0mm
28mm
3/8"
36mm
30410010
35.0mm
30mm
10mm
26mm
30410011
35.0mm
28mm
1/2"
36mm
30410012
40.0mm
28mm
1/2"
36mm
30410013
50.8mm
28mm
3/8"
36mm
