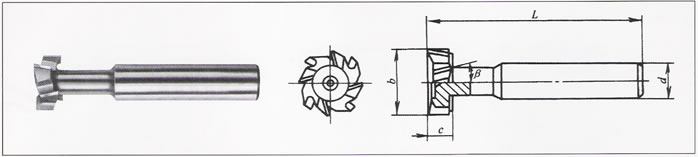

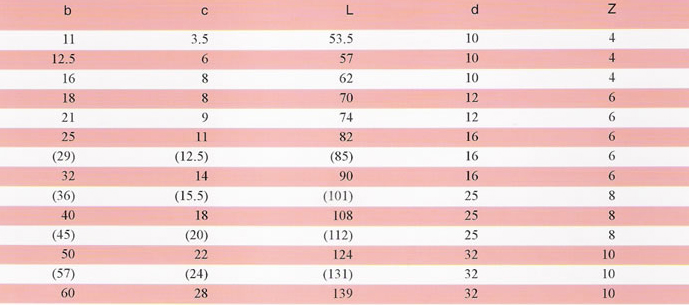

T-slot mills with straight shank |
|
|
|
| |
|

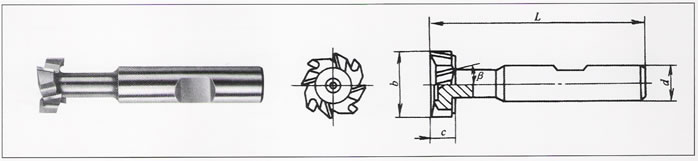

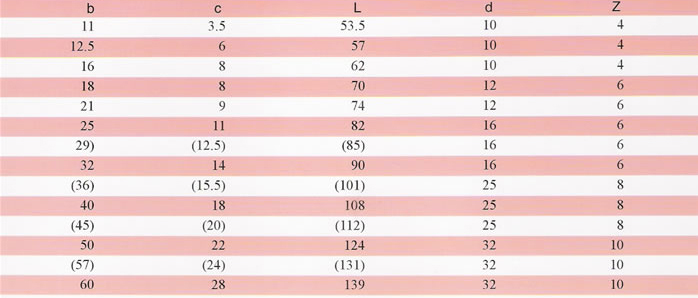

Flatted shank T-slot mills |
|
|
| |
|
|
Woodruff Keyseat Cutters |
| Woodruff
Keyseat Cutters are right handed and have a 1/2" straight
shank with a set screw flat on the shank. 1" diameter and
larger have two holding flats. |
American
Std |
Tool
No. |
Diam. |
Width |
Overall |
No.
of |
Cutter
No. |
Inches |
of
Cut |
Length |
Teeth |
202 |
*202 |
1/4" |
1/16" |
2-1/16" |
6 |
202-1 |
*202-1 |
5/16" |
1/16" |
2-1/16" |
6 |
203 |
*203 |
3/8" |
1/16" |
2-1/16" |
8 |
204 |
*204 |
1/2" |
1/16" |
2-1/16" |
10 |
302-1 |
*302-1 |
5/16" |
3/32" |
2-3/32" |
6 |
303 |
*303 |
3/8" |
3/32" |
2-3/32" |
8 |
304 |
*304 |
1/2" |
3/32" |
2-3/32" |
10 |
305 |
305 |
5/8" |
3/32" |
2-3/32" |
10 |
403 |
*403 |
3/8" |
1/8" |
2-1/8" |
8 |
404 |
*404 |
1/2" |
1/8" |
2-1/8" |
10 |
405 |
405 |
5/8" |
1/8" |
2-1/8" |
10 |
406 |
406 |
3/4" |
1/8" |
2-1/8" |
10 |
505 |
505 |
5/8" |
5/32" |
2-5/32" |
10 |
506 |
506 |
3/4" |
5/32" |
2-5/32" |
10 |
507 |
507 |
7/8" |
5/32" |
2-5/32" |
12 |
605 |
605 |
5/8" |
3/16" |
2-3/16" |
10 |
606 |
606 |
3/4" |
3/16" |
2-3/16" |
10 |
607 |
607 |
7/8" |
3/16" |
2-3/16" |
12 |
608 |
608 |
1" |
3/16" |
2-3/16" |
12 |
609 |
609 |
1-1/8" |
3/16" |
2-3/16" |
12 |
610 |
610 |
1-1/4" |
3/16" |
2-3/16" |
14 |
|
|
|
|
|
|
|
| |
American
Std |
Tool
No. |
Diam. |
Width |
Overall |
No.
of |
Cutter
No. |
Inches |
of
Cut |
Length |
Teeth |
707 |
707 |
7/8" |
7/32" |
2-7/32" |
12 |
708 |
708 |
1" |
7/32" |
2-7/32" |
12 |
709 |
709 |
1-1/8" |
7/32" |
2-7/32" |
12 |
710 |
710 |
1-1/4" |
7/32" |
2-7/32" |
14 |
806 |
806 |
3/4" |
1/4" |
2-1/4" |
10 |
807 |
807 |
7/8" |
1/4" |
2-1/4" |
12 |
808 |
808 |
1" |
1/4" |
2-1/4" |
12 |
809 |
809 |
1-1/8" |
1/4" |
2-1/4" |
12 |
810 |
810 |
1-1/4" |
1/4" |
2-1/4" |
14 |
811 |
811 |
1-3/8" |
1/4" |
2-1/4" |
14 |
812 |
812 |
1-1/2" |
1/4" |
2-1/4" |
16 |
1008 |
1008 |
1" |
5/16" |
2-5/16" |
12 |
1009 |
1009 |
1-1/8" |
5/16" |
2-5/16" |
12 |
1010 |
1010 |
1-1/4" |
5/16" |
2-5/16" |
14 |
1011 |
1011 |
1-3/8" |
5/16" |
2-5/16" |
14 |
1012 |
1012 |
1-1/2" |
5/16" |
2-5/16" |
16 |
1208 |
1208 |
1" |
3/8" |
2-3/8" |
12 |
1210 |
1210 |
1-1/4" |
3/8" |
2-3/8" |
12 |
1211 |
1211 |
1-3/8" |
3/8" |
2-3/8" |
14 |
1212 |
1212 |
1-1/2" |
3/8" |
2-3/8" |
16 |
|
|
|
|
|
|
|
| |
