hss

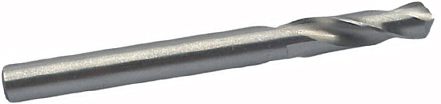

stub drill bits, fully ground, straight shank, din 1897, type n |
 |
*
short flute and short overall length for maximum rigidity in
machine drilling.
* extremely resistant for heavy-duty work on automatic
boring machines and turret lathes as well as for use in
hand drills under extreme conditions.
* ideal for industrial application in thin sheet metals.
* for drilling steel, cast steel, grey cast iron, malleable
iron, sintered metal and low hardness alloyed materials.
|
|
| |
| dia. |
working
length |
overall
length |
Article
Number |
| 1.0 |
6 |
26 |
30109001 |
| 1.5 |
9 |
32 |
30109002 |
| 2.0 |
12 |
38 |
30109003 |
| 2.5 |
14 |
43 |
30109004 |
| 3.0 |
16 |
46 |
30109005 |
| 3.2 |
16 |
49 |
30109006 |
| 3.5 |
18 |
49 |
30109007 |
| 4.0 |
20 |
52 |
30109008 |
| 4.2 |
22 |
55 |
30109009 |
| 4.5 |
24 |
58 |
30109010 |
| 4.8 |
26 |
62 |
30109011 |
| 5.0 |
26 |
62 |
30109012 |
| 5.5 |
28 |
66 |
30109013 |
| 6.0 |
28 |
66 |
30109014 |
| 6.5 |
31 |
70 |
30109015 |
| 7.0 |
34 |
74 |
30109016 |
| 7.5 |
34 |
74 |
30109017 |
| 8.0 |
36 |
79 |
30109018 |
| 8.5 |
36 |
79 |
30109019 |
| 9.0 |
40 |
84 |
30109020 |
| 9.5 |
40 |
84 |
30109021 |
| 10.0 |
43 |
89 |
30109022 |
|
|
| |
